ispMACH 4000ZE Pico Development Kit
原廠/品牌: Lattice 上架日期: 03/22
供應商: Lattice 產品類別: CPLD

     The MachXO Mini Development Kit is an easy to use, low-cost platform to accelerate the evThe ispMACH 4000ZE Pico Development Kit is a battery-powered, low-cost platform to accelerate the evaluation of ispMACH 4000ZE CPLDs. The kit features the ispMACH 4256ZE-MN144 device, Power Manager II ispPAC-POWR6AT6 device, a high-side current sense circuit, a 7-segment LCD display, and an expansion header landing for I2C, JTAG, and GPIO interfacing.

     Using the preloaded ispMACH 4000ZE Pico Power demo design provided with the development kit, you can now test within minutes an I2C master and LCD controller interfaces in addition to the embedded ispMACH 4000ZE OSCTIMER block. You can then build your own designs using the free downloadable ispMACH 4000ZE reference design source code, implementing these features in less than an hour. The board also features USB channels for JTAG programming and I2C interfacing from a host PC. A pin header landing provides access to both PIO banks of the ispMACH 4000ZE CPLD and the on-board I2C bus. The board can be controlled with a I2C utility program (PicoView) running on a host PC.aluation of MachXO PLDs. The kit features the MachXO LCMXO2280 device, 2 Mbit SPI Flash and 1 Mbit SRAM memory, a temperature sensor, an expansion header for I2C and SPI interfaces, and several LEDs and user switches.

     Using the preloaded mini system-on-chip (Mini SoC) design provided with the development kit, you can now test within minutes I2C, SPI, UART and SRAM interfaces in addition to the 8-bit LatticeMico8 microcontroller. You can then build your own designs using the free downloadable reference design source code, implementing these features in less than an hour. The board also features USB channels for JTAG programming and debugging from a host PC. A pin header provides access to a variety of PIO banks of the MachXO PLD and the on-board I2C bus. The board can be controlled with menu driven interface via terminal programs running on a host PC.

零件編號 封裝 規格說明 單價 庫存 最小量 購量
LC4256ZE-P-EVN ispMACH 4000ZE Pico Development Kit       洽詢 2 週 1 洽詢

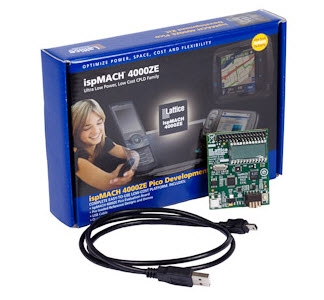

Development Kit Contents

  • ispMACH 4000ZE Pico Evaluation Board
    The ispMACH 4000ZE Pico Evaluation Board features the following:
    • Pre-programmed Pico Power Demo
    • ispMACH 4000ZE device (LC4256ZE-5MN144C)
    • Power Manager II device (ispPAC-POWR6AT6-01SN32I)
    • LCD panel
    • USB mini jack socket for power, JTAG programming, and I2C interface
    • 2X15 header landing for off-board expansion provides access to LC4256ZE GPIOs, POWR6AT6 VMON inputs, I2C, and JTAG chain
    • Push button for global reset
    • 4-bit DIP switch to user-defined inputs
    • 3.3V and 2.5V supply rails
    • Current and voltage sensor circuits
    • Battery or USB power source
    • RoHS-compliant packaging and process
    • Marked for CE, China RoHS Environmental-Friendly Use Period (EFUP) and Waste Electrical and Electronic Equipment (WEEE) Directives
  • One USB connector cable
  • QuickSTART Guide
