Processor PM Development Kit
原廠/品牌: Lattice 上架日期: 03/22
供應商: Lattice 產品類別: Power

     Get started integrating multiple power management

      ICs fast with the ProcessorPM Development Kit. The kit is a versatile, ready to use hardware platform for evaluating and designing with ProcessorPM power management devices. The kit is based on a 2.5” x 2” evaluation board that features the ProcessorPM - POWR605 device in a lead-free 24-pin QFN package, a Power Manager II - POWR6AT6, evaluation circuits that emulate a power supply bus and processor interface, and an expansion header.

     To help you get started quickly, the kit includes a pre-configured processor support demonstration design that will support hundreds of microprocessor, DSP, ASSP, or ASIC power management scenarios. The demo integrates three key support functions for a processor: voltage supervisor, watchdog timer (WDT), and reset generator. The board is controlled with switches and pushbuttons. And a slide potentiometer emulates brown-out conditions on a 2.5V supply rail. A pin header provides access to IOs of the ProcessorPM and the POWR6AT6. You may extend or modify the pre-configured demo using PAC-Designer® software.

     The board can be modified to support programming with Lattice ISP Download Cables with a parallel PC connection and demonstrate power supply margin/trim scenarios with the POWR6AT6.

零件編號 封裝 規格說明 單價 庫存 最小量 購量
PACPOWR605-P-EVN ProcessorPM Development Kit       洽詢 2 週 1 洽詢

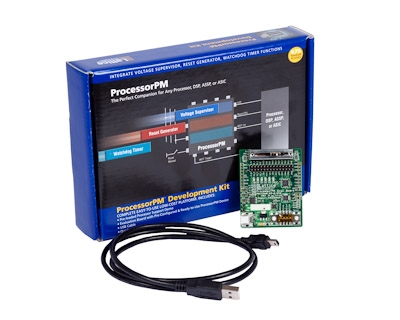

Development Kit Contents

  • The ProcessorPM Evaluation Board features the following:
    • Pre-Configured Processor Support Demo
    • ProcessorPM-POWR605
    • Power Manager II POWR6AT6
    • 3.3V, 2.5V, and 1.8V Supply Rails
    • LEDs
    • Slide Potentiometer
    • 2x14 Expansion Header
    • USB Mini Jack Socket (Program/Power)
    • 2 Push Buttons
    • 4-Bit DIP Switch
    • JTAG and I2C Header Landings
    • RoHS-compliant packaging and process
  • USB connector cable
  • QuickSTART Guide
